About ORTIS™

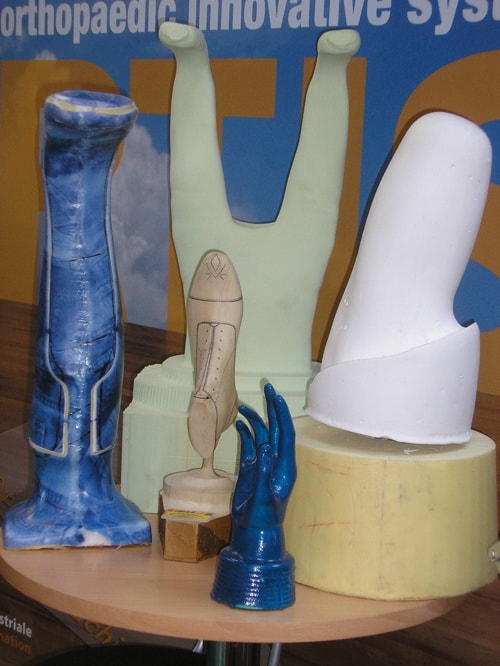

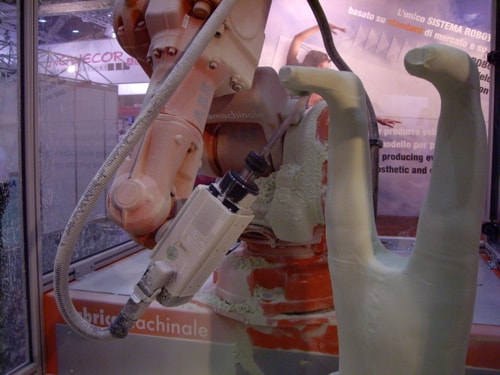

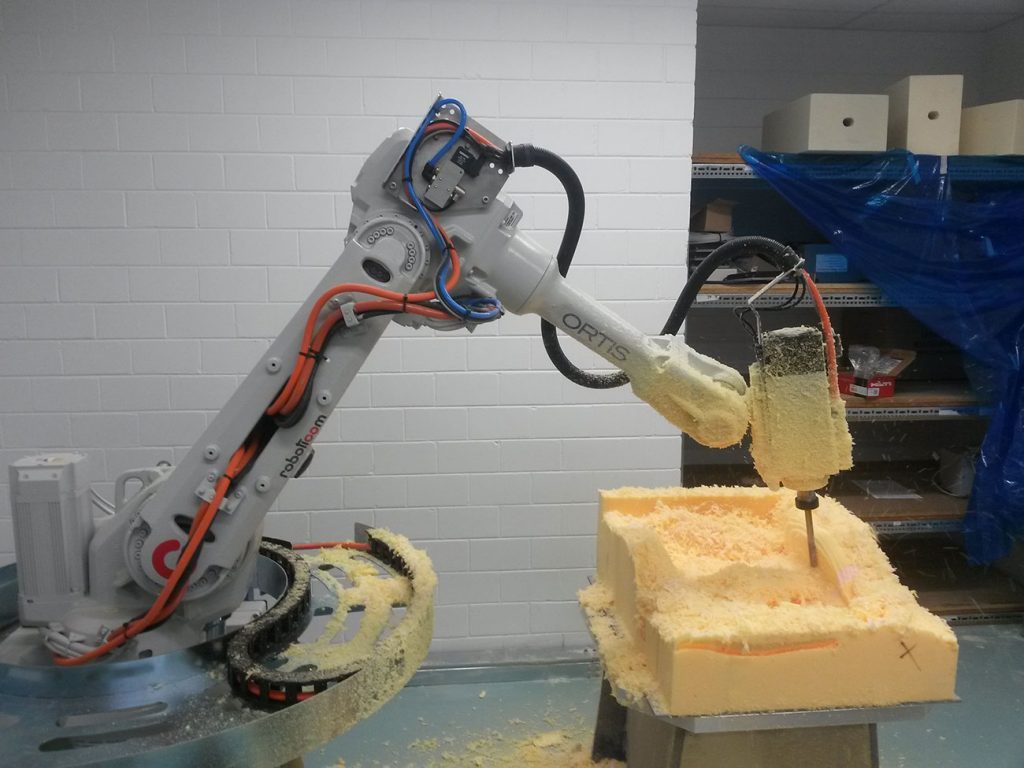

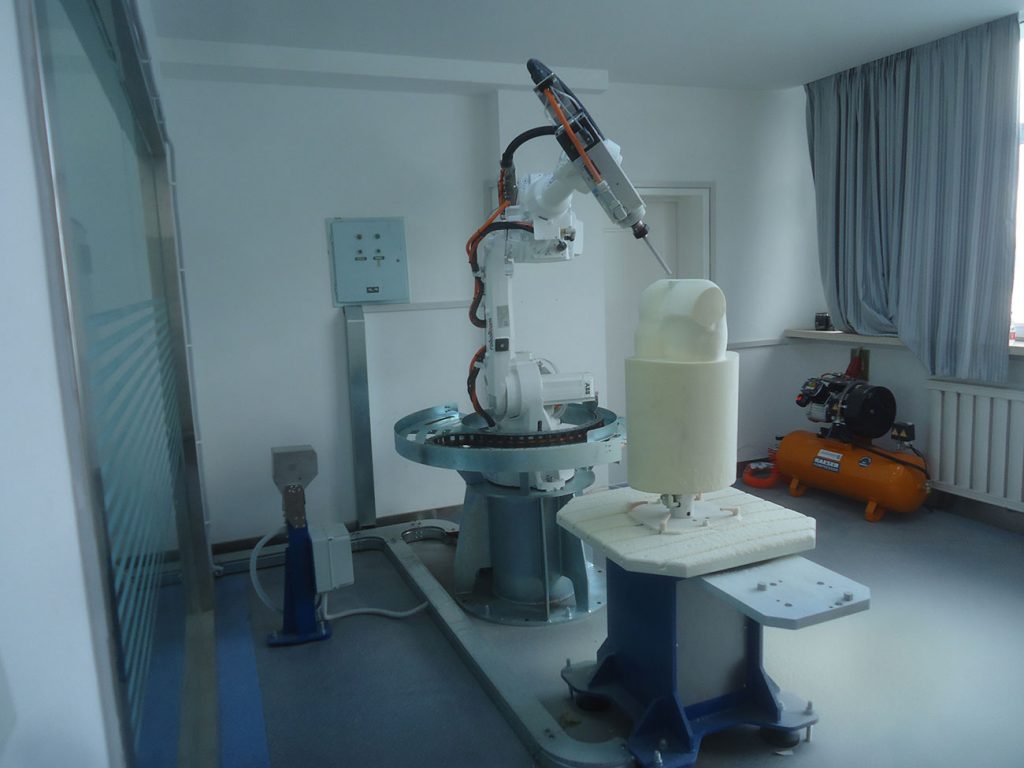

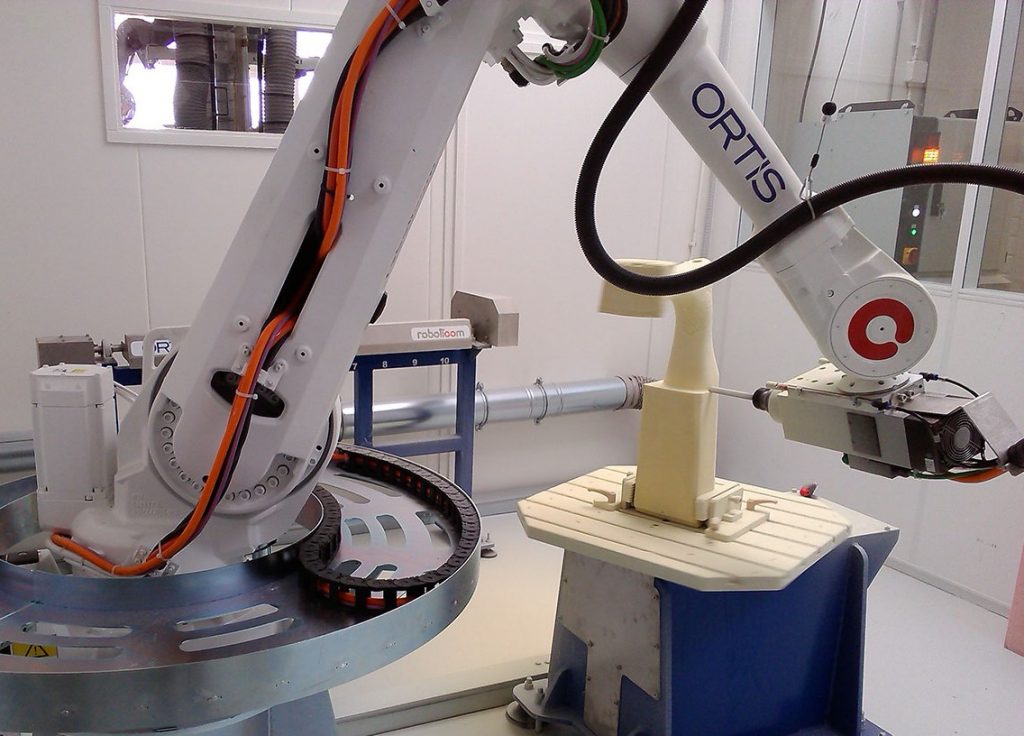

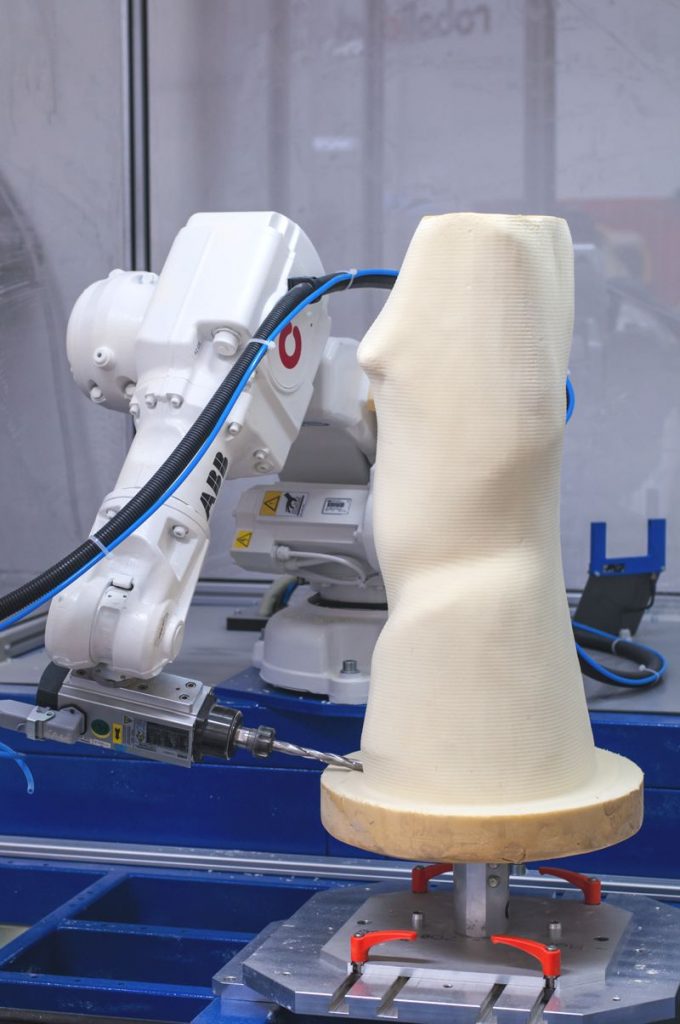

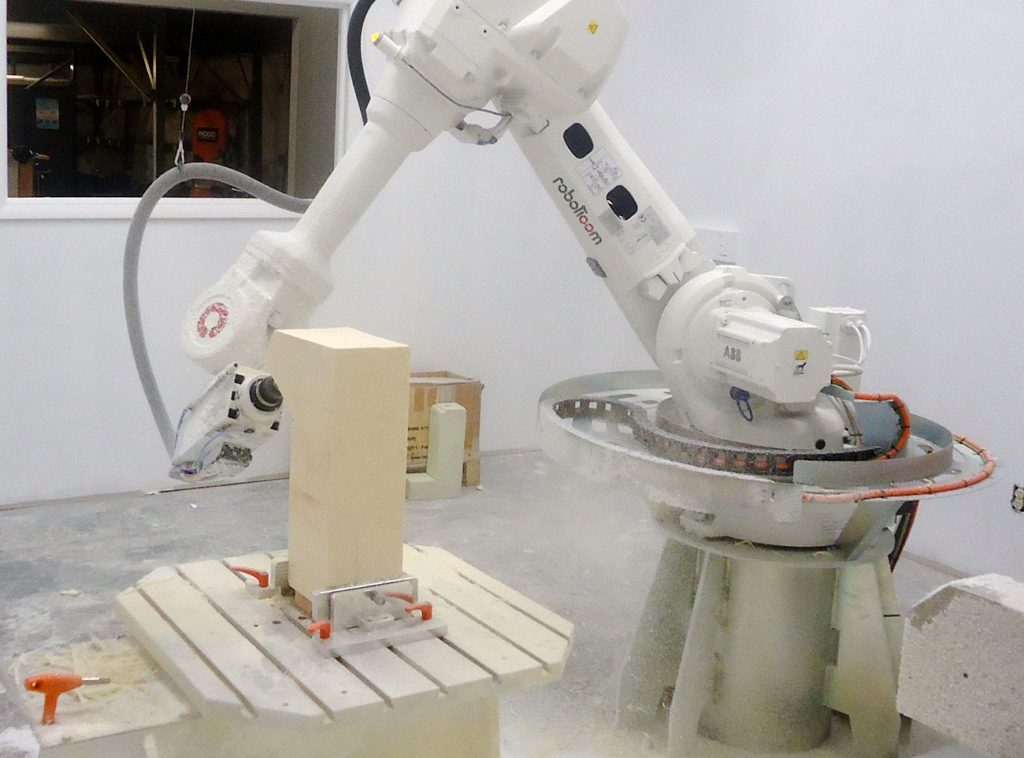

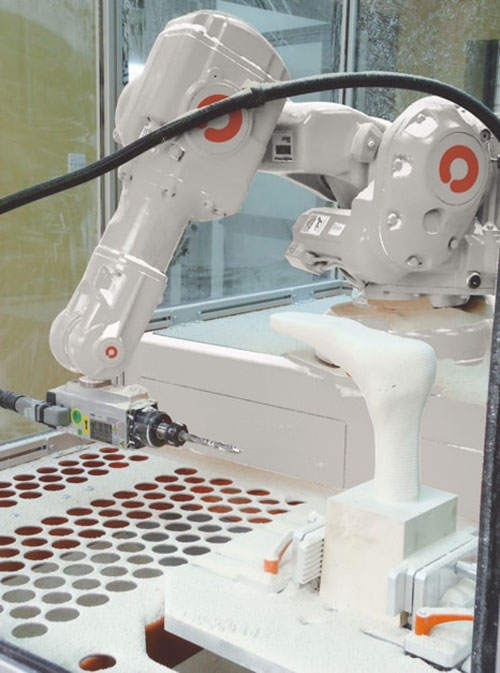

ORTIS is a robotic milling system expressly aimed at the orthopedic industry, allowing to create any model (positive or negative) for the production of orthoses and custom prostheses. ORTIS Systems are bundled with our famous ARPP software for easy operation and compatibility with any CAD software capable of exporting the models in 3D formats.

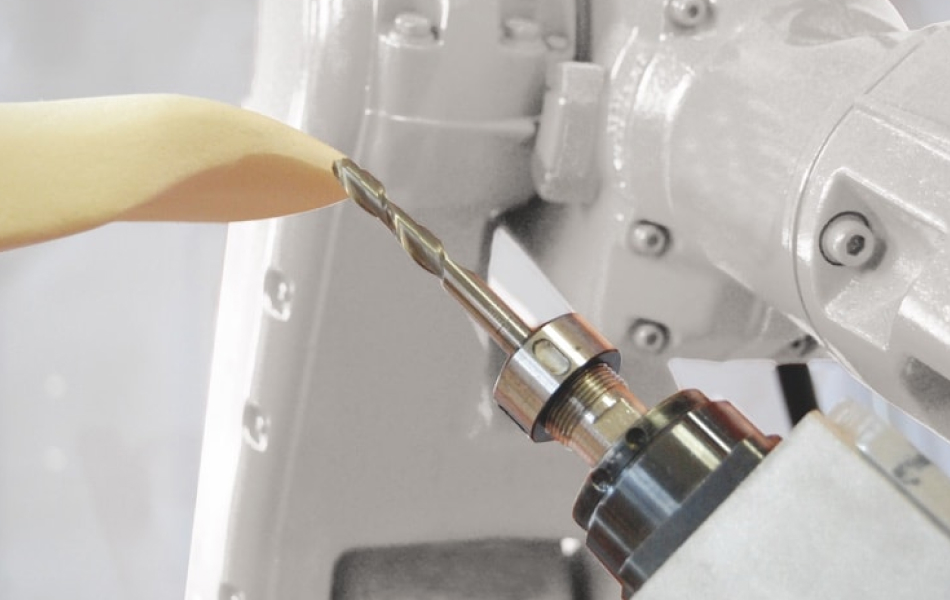

Why ORTIS?
- ORTIS is the first carving robotic solution introduced in the orthopedic market in 2008.
- Over 100 active ORTIS systems in four different continents and 10 different countries
- Local Customer Service support for the customers in the US and Europe.
ORTIS Systems are designed in three different main configurations to adapt to the customer needs, based on the product type, size, and production process.
Special Offer
With attractive tax incentives and our special financing option, the timing to purchase an Ortis system cannot get better:
1- Covid-19 Payment Deferment Program
By financing your equipment purchase through our banking partners, you can take advantage of a special financing option:
- $0 down payment
- $0 payment for the first 6 months
Simply put, you can acquire this technology for only $0 down and $0 payment for the first 6 months while taking advantage of an amazing tax deduction allowance available to you via Section 179.
2- Section 179 Tax savings
The Section 179 Deduction has a real impact on bringing down your equipment costs. The Section 179 Deduction for 2020 is $1,040,000. This means you can deduct the full cost of qualifying equipment, up to $1,040,000 from your taxes. Section 179 always expires at midnight on December 31st. So to take advantage of Section 179 this year, you must buy/lease your equipment, and put it into use by the end of this year.
ORTIS™ Products

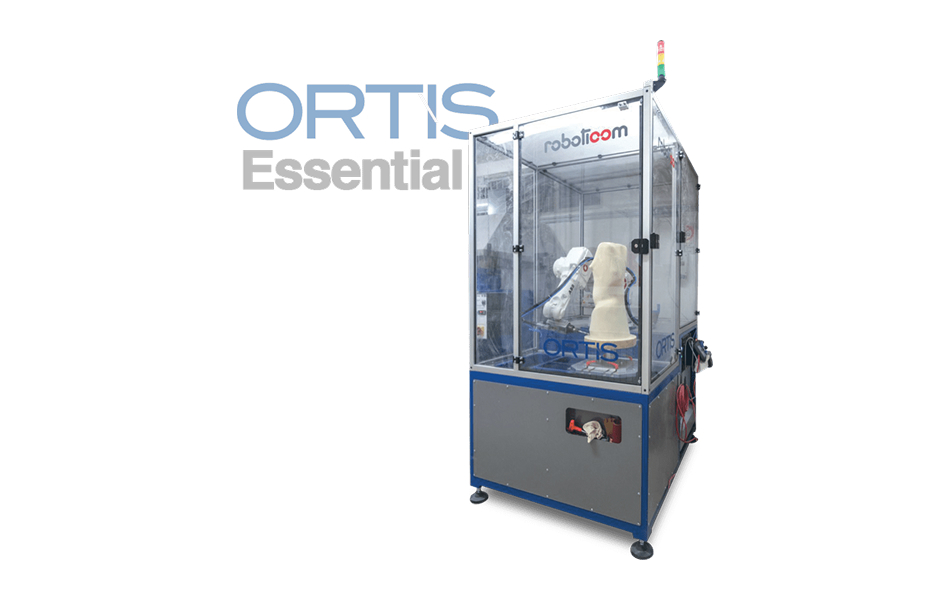

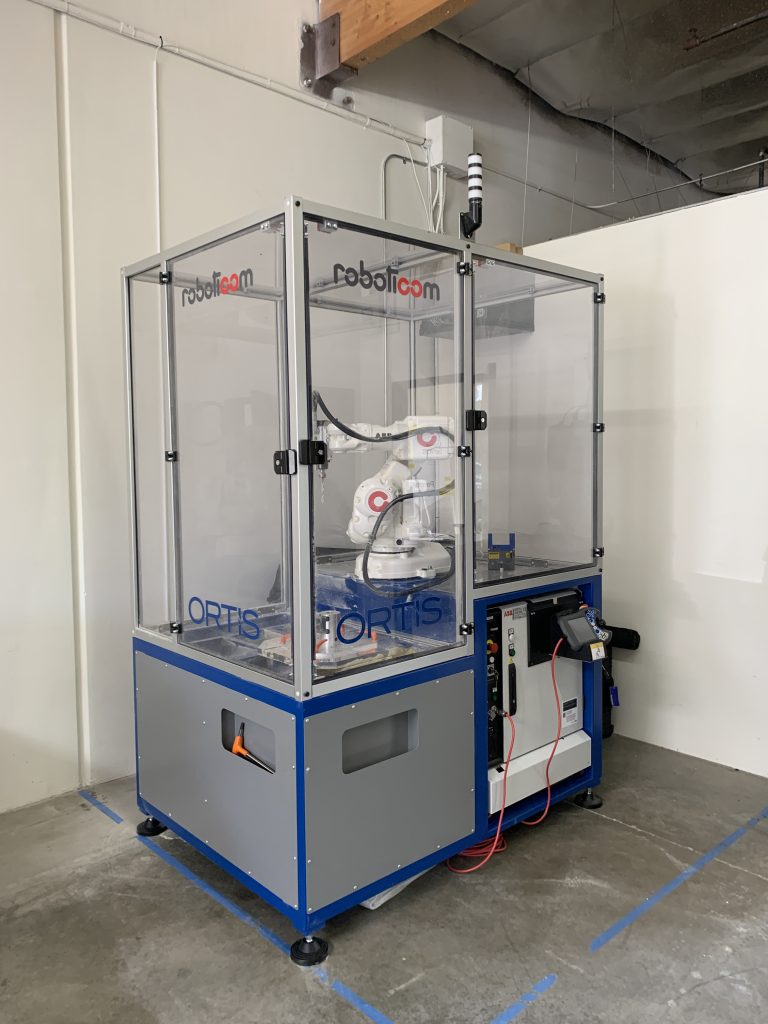

ORTIS™ Essential

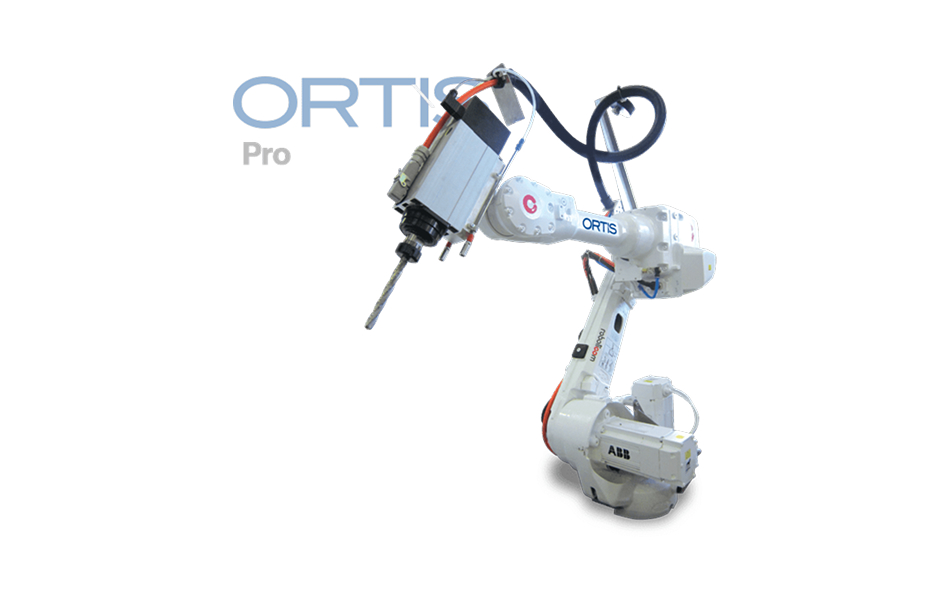

ORTIS™ Professional

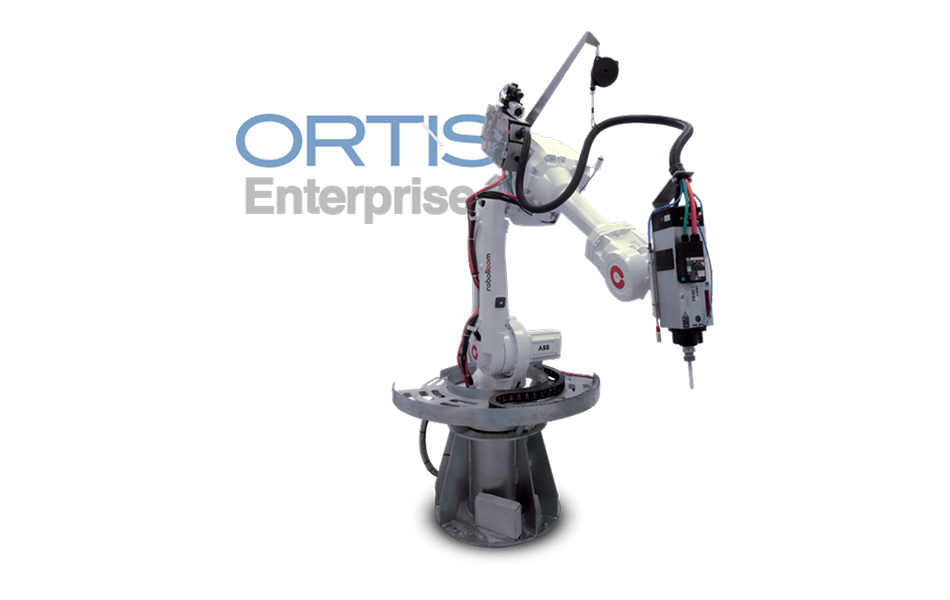

ORTIS™ Enterprise

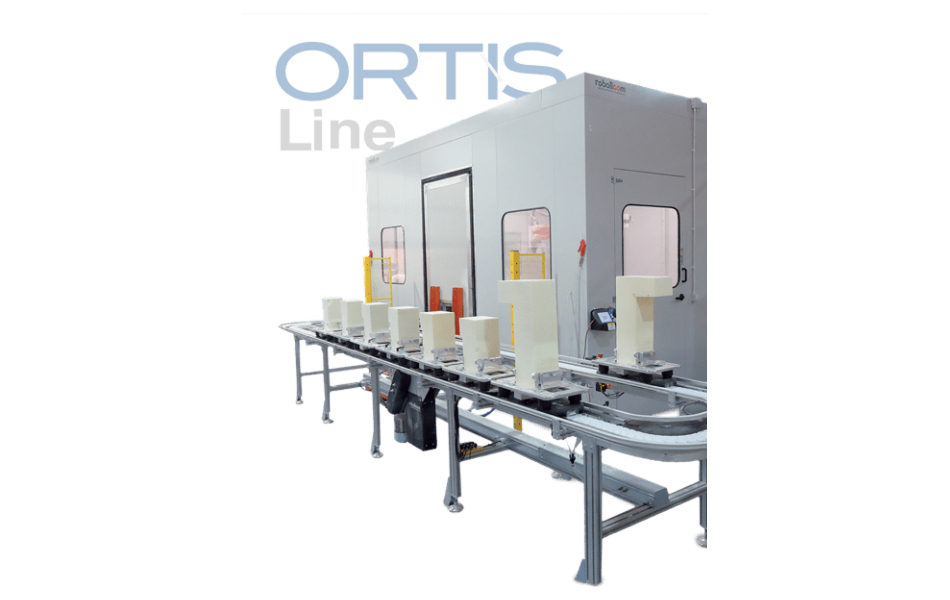

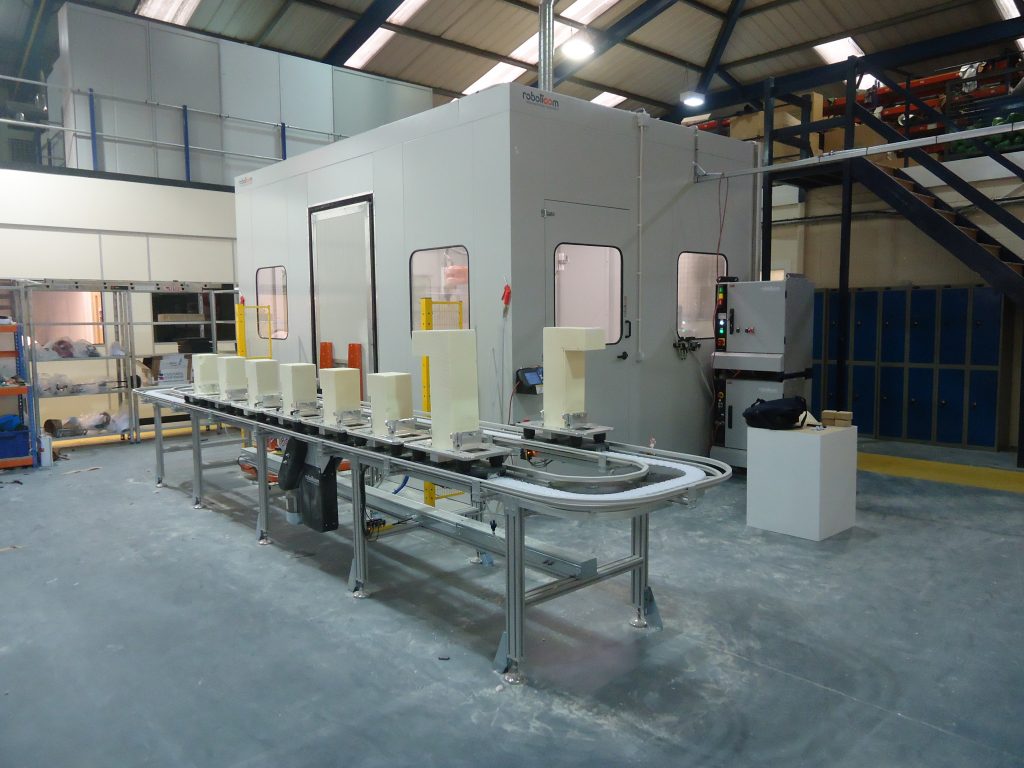

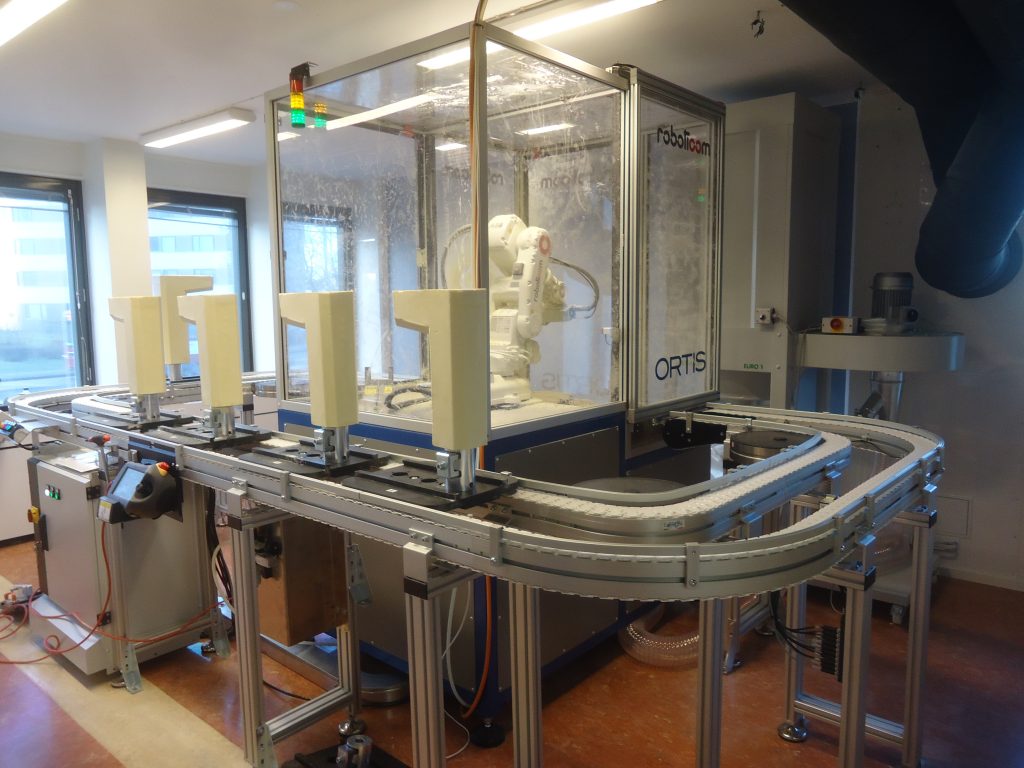

ORTIS™ Line
Compare ORTIS™ Models
|
||||
| ORTIS™ ESSENTIAL
|
ORTIS™ PRO
|
ORTIS™ ENTERPRISE
|
||
| Robot Type | ABB 6-Axes 6 kg (13 lbs) Payload on the Wrist Working Area Approximately 1000 mm (3 feet) |
ABB 6-Axes or KUKA 6-Axes 20 kg (44 lbs) Payload on the Wrist Working Area Approximately 1600 mm (5 feet) |
ABB 6-Axes or KUKA 6-Axes 40-60 kg (88-132 Ibs) Payload on the Wrist Working Area from 2.000 to 2.500 mm (6 feet to 8 feet) |
|
| 380V Three-Phase Electro Spindle | 1.0 KW 24.000 rpm Auto Cooling System Up to ER20 Collect (Tool Shank Diameters from 2 to 12 mm) Manual Tool Change |
3.6 KW 24.000 rpm Fan-Cooling Up to ER30 Collect (Tool Shank Diameters from 3 to 20 mm) Manual Tool Change |
4.0 KW 24.000 rpm Fan-Cooling ISO30 Tool Holders (Tool Shank Diameters from 2 to 20 mm) Automatic Tool Change |
|
| Presetting Laser | Laser Device Automatically Measures the Tool Length | Laser Device Automatically Measures the Tool Length | Laser Device Automatically Measures the Tool Length | |
| Tool Box | 10-position toolbox for ISO30 Tool Holders The robot deposits the holder with the actual tool in the box and automatically takes the new required tool. | |||
| Work Area | Processes blocks up to:
· Corsets – Diam. 600x(H)1000 mm · AFO / KAFO – 350x200x(H)650 mm · SEATING SYSTEMS – 500x600x(H)350 mm |
Processes blocks up to:
· Corsets – Diam 800x(H)1200 mm · AFO / KAFO – 350x300x(H)1000 mm · SEATING SYSTEMS – 800x800x(H)800 mm |
Processes blocks up to:
· Corsets – Diam 1200x(H)1500 mm · AFO / KAFO – 350x300x(H)1500 mm · SEATING SYSTEMS – 1200x1200x(H)1200 mm |
|
| Dimensions | The Complete System: The Robot Controller is housed in an aluminum box, prearranged for chip suction. The dimensions are: 1700 length x 1250 width x 2450 height mm (6 feet length x 4 feet width x 8 feet height) |
Installation on Industrial Floor Minimum Area: 3000 x 3000 x 2700 mm (10 feet x 10 feet x 9 feet) Additional Area for Robot Control Unit: 1000 x 1000 x 2000 mm (3 feet x 3 feet x 7 feet) To increase the productivity, you can install more than one turntable/ xed table around the robot |
Installation on Industrial Floor Minimum Area: 4000 x 4000 x 3000 mm (13 feet x13 feet x 10 feet) Additional Area for Robot Control Unit: 1000 x 1000 x 2000 mm (3 feet x 3 feet x 7 feet) To increase the productivity, you can install more than one turntable/ xed table around the robot |
|
| Weight | A total of about 600 kg (1300 Ibs) | Robot with its own base: 550 kg (1200 lbs) Turntable: 270 kg (600 lbs) Control unit: 250 kg (550 lbs) |
Robot with its own base: 650 kg (1500 lbs) * Turntable: 270 kg (600 lbs) Control Unit: 250 kg (550 lbs) Tool Box: 280 kg (625 lbs) |
|
| Power Supply 380 VAC Three-Phase 50-60 Hz ** | 6 KVA (average consumption 1.5 KW) |
12 KVA (average consumption 4.5 KW) |
15 KVA (average consumption 5.5 KW) |
|
| Noise Level | <75 dB | <75 dB on a typical installation | <75 dB on a typical installation | |
| Compressed Air | Optional, at least 3 bar | Minimum 6 bar | Minimum 6 bar | |

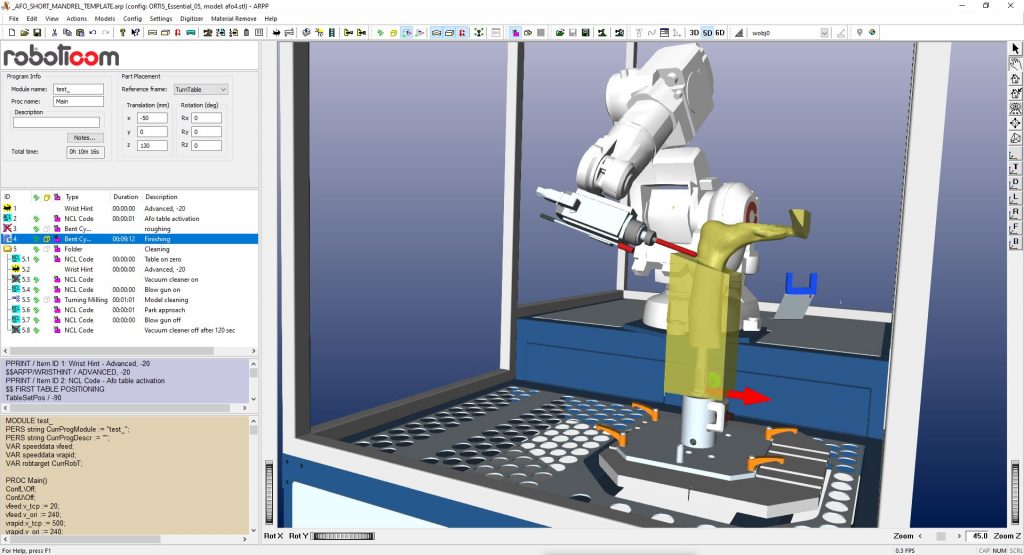

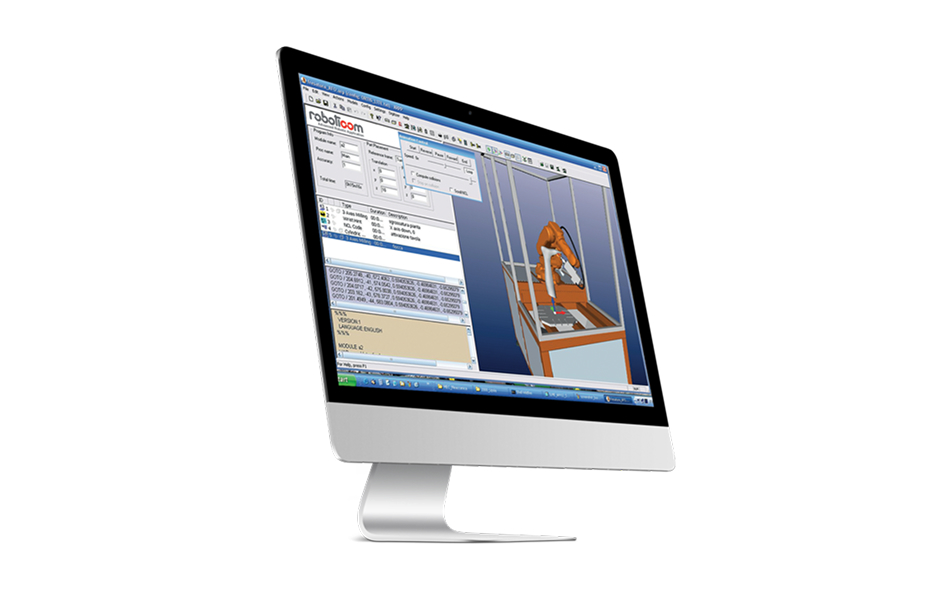

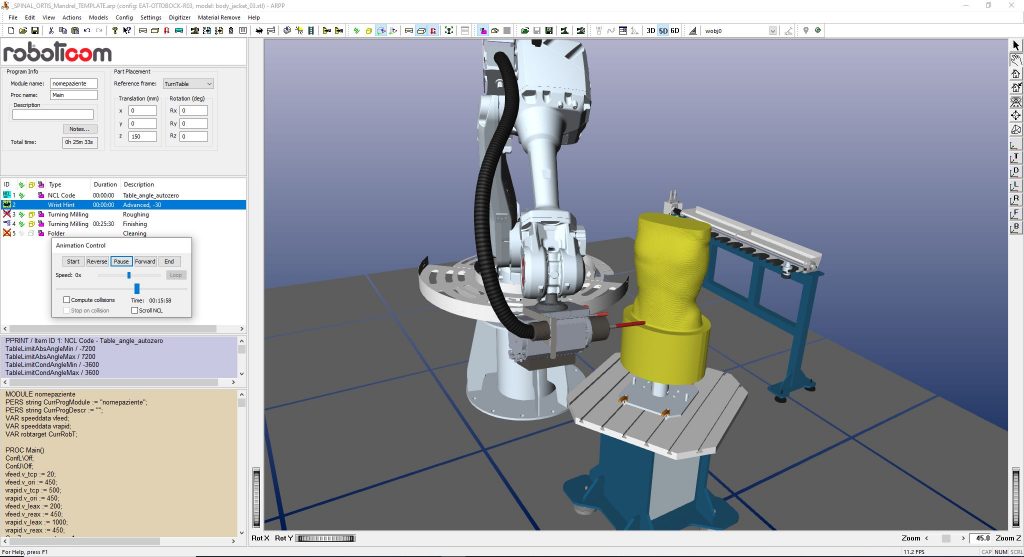

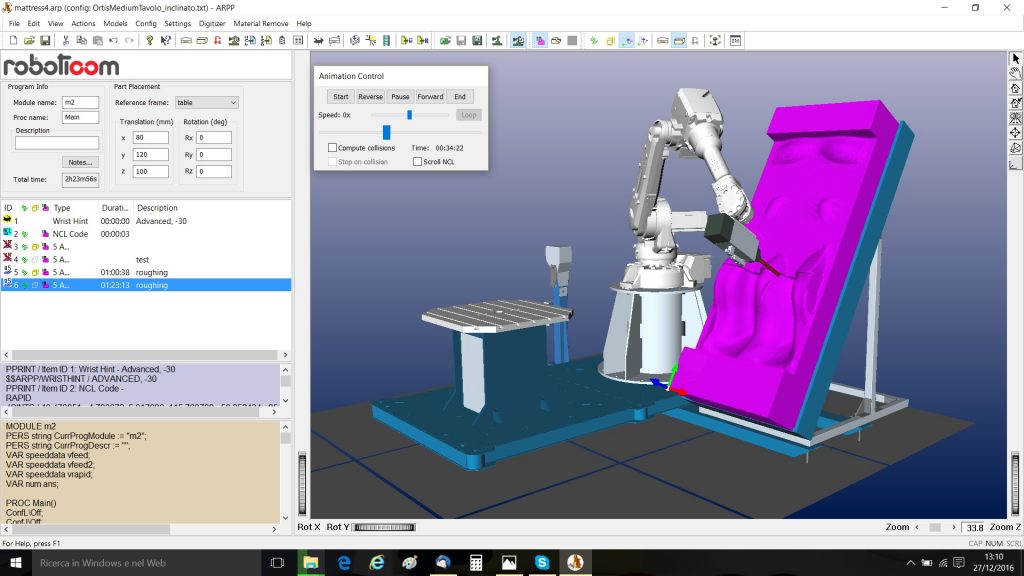

ARPP® Software
ARPP® owns CAM functionalities that generate optimized tool paths for artistic works. This unique solution ensures a quick learning time and provides simple procedures for the technicians.
